Centre height 125 mm
Distance between centres 400 mm
Max. Longitudinal travel 440 mm
Grinding wheel 400x50x127 mm
Max. grinding diameter 250 mm
Table load max. 80 kg
Workpiece weight on centres max. 80 kg
Grinding wheel speeds: number (steps) 3, 1500-1800 rpm
Angular displacement +/- 45 °

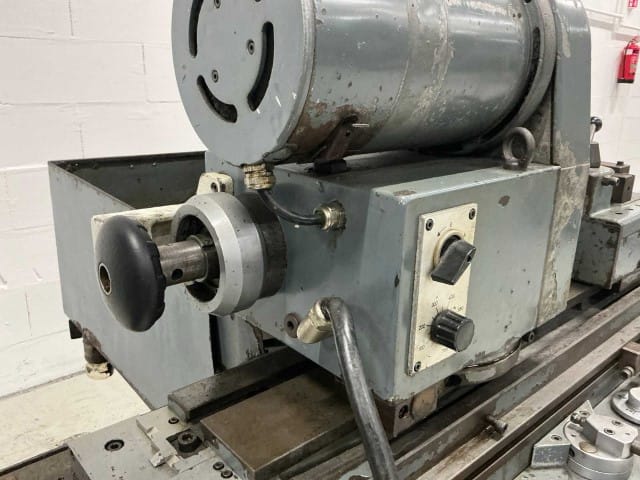

Work piece spindle head:
-speeds stepless 30-675 rpm
-rotatable 90 °
Spindle taper 5 MT
Taper in tailstock 3 MT
Table speed stepless 0.05-5.50 m/min
External Grinding wheel motor 3 kW
Machine’s weight about 1500 kg
